  7. VIGIPACT RH99P RESIDUAL CURRENT PROTECTION RELAY 30MA-30A 110/130VAC 50/60HZ
  • (0)
SCHNEIDER ELECTRIC

VIGIPACT RH99P RESIDUAL CURRENT PROTECTION RELAY 30MA-30A 110/130VAC 50/60HZ

56272
2613518

Sign in to view price

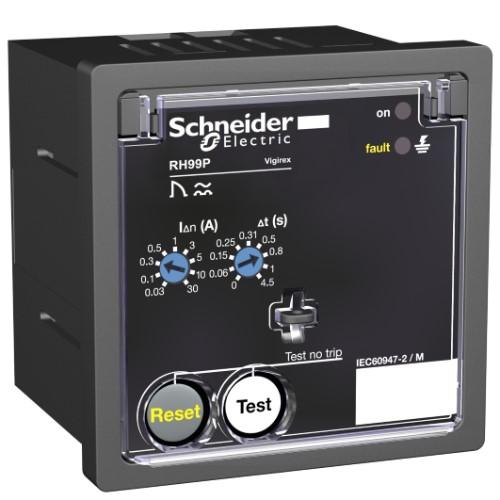

VigiPacT RH99P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 110/130VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity is selectable with 9 thresholds from 30 mA to 30 A. The time delay is selectable with 9 settings from instantaneous to 4.5s. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
Schneider-56272_Datasheet1
  • All returns must be made within 7 days of purchase.
  • Valid receipt is required for all returns.
  • Click Here to view the return policy.
Available Shipping Methods:

Product Overview

Product ID:
2613518
Manufacturer Part Number:
56272
Brand/Manufacturer
SCHNEIDER ELECTRIC
Unit of Measure:
PCS

Specification

Depth:
78 mm
Error registration possible:
no
Function:
For three-phase supply system
Height:
72 mm
Indication of difference current:
no
Max. permitted delay-on energization time:
4.5 s
Min. adjustable delay-on energization time:
0 s
Number of contacts as change-over contact:
1
Number of contacts as normally closed contact:
1
Number of contacts as normally open contact:
1
Rated operating frequency:
50...60 Hz
Response value amperage 1:
0...30 mA
Response value amperage 2:
0...30000 mA
Supply voltage AC 50 Hz:
110...130 V
Supply voltage AC 60 Hz:
110...130 V
Supply voltage DC:
0...0 V
Type of electric connection:
Clip connection
Voltage measuring range:
110...130 V
Voltage type (supply voltage):
AC
Width:
72 mm
With detachable clamps:
no
