Wireless Data Logging System LR8410

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8410-20 is an innovative wireless logging system capable of capturing up to 105 channels of data wirelessly using Bluetooth® wireless technology, distance up to 30meter length coverage.

Key Features

Capture logging data using Bluetooth® wireless technology. Capture logging data using Bluetooth® wireless technology.
Easily add up to 7 input units wirelessly to keep your environment free of tangled wires.
Measurement units have built-in buffer memory so that measurement data can be saved if communication is temporarily disrupted.
100 msec simultaneous sampling across all channels using rapid scanning method.
Choose an input unit based on the parameters you wish to measure (15-channel and 2-channel units are available).
Quick Set guide makes configuration a breeze.

Supports a variety of measurements with a diverse line of measurement units

For applications such as :

Developing and evaluating parts
Simulating electricity generation characteristics and evaluating performance of solar power systems
Evaluating air conditioning equipment and systems and measuring temperature
Performance evaluation of the house
Verifying elevator operation and performing maintenance
Developing inverters and motors for railcars
Monitoring the growth environment in a plastic greenhouse or other structure
Managing temperature and humidity while shipping freight
Recording rainfall volume

BENEFITS

1 : Making the wiring process faster while minimizing costs

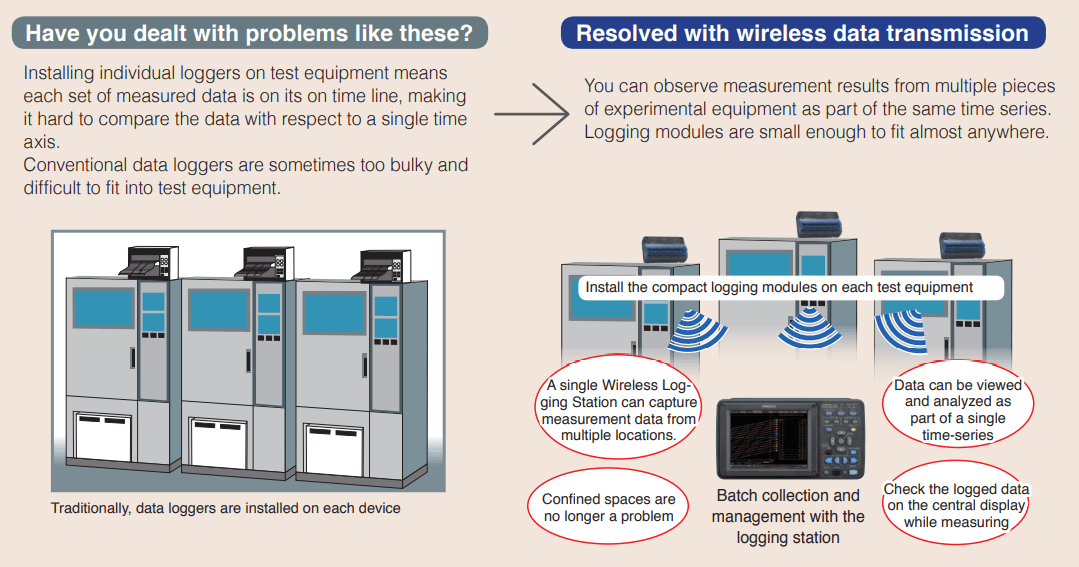

2 : Make measurements where it would not be practical to wire equipment directly

3 : Synchronize measurement data

4 : Data is protected by a battery and backup function

5 : Easy wireless setup

Wireless Data Logging System LR8410

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.

Stable Logging - Even at High Voltages and Frequencies. Minimize the Effects of Noise.

The LR8450 reduces the effects of noise to deliver stable logging, even at high voltages and frequencies. Legacy data loggers could not log temperature accurately in noisy environments due to the effects of high frequencies, which caused values to shift or fluctuate significantly. The new Hioki Memory HiLogger LR8450 uses a revamped design to dramatically reduce the effects of high-frequency noise, and is ideal for temperature logging of inverters and batteries.

Key Features

Expandable to 120 ch with wired/plug-in units
Record voltage output from pressure and vibration sensors with 1ms sampling speed (Use model High Speed Voltage Unit U8553)
Directly connect strain gauge and measure signals in as fast as 1ms intervals (Use model Strain Unit U8554)
Measure temperature near an inverter or battery sampling rate of up to 10 ms. (Use models: Voltage/Temp Unit U8550, Universal Unit U8551)

BENEFITS

1 : Wireless for ease of use
